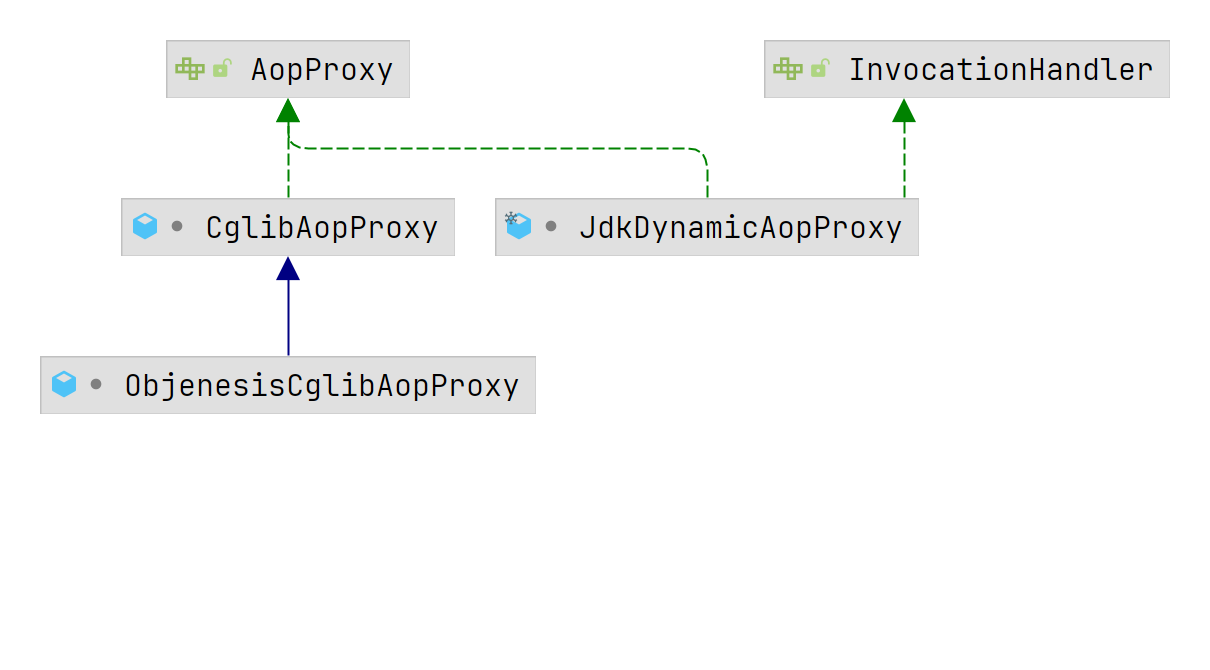

Spring AOP 는 타겟이 클래스냐 인터페이스냐에 따라 두가지 방법으로 aop를 처리한다.
인터페이스 인 경우 JdkDynamicAopProxy를 사용하며 클래스인 경우 ObjenesisCglibAopProxy 를 사용하여 처리한다.
public abstract class AbstractAutowireCapableBeanFactory extends AbstractBeanFactory
implements AutowireCapableBeanFactory {
/**
* Central method of this class: creates a bean instance,
* populates the bean instance, applies post-processors, etc.
* @see #doCreateBean
*/
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
if (logger.isTraceEnabled()) {
logger.trace("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
// Make sure bean class is actually resolved at this point, and
// clone the bean definition in case of a dynamically resolved Class
// which cannot be stored in the shared merged bean definition.
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// Prepare method overrides.
try {
mbdToUse.prepareMethodOverrides();
} catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
} catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}
try {
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isTraceEnabled()) {
logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
} catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
// A previously detected exception with proper bean creation context already,
// or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
throw ex;
} catch (Throwable ex) {
throw new BeanCreationException(
mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
}
}
/**
* Actually create the specified bean. Pre-creation processing has already happened
* at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
* <p>Differentiates between default bean instantiation, use of a
* factory method, and autowiring a constructor.
* @param beanName the name of the bean
* @param mbd the merged bean definition for the bean
* @param args explicit arguments to use for constructor or factory method invocation
* @return a new instance of the bean
* @throws BeanCreationException if the bean could not be created
* @see #instantiateBean
* @see #instantiateUsingFactoryMethod
* @see #autowireConstructor
*/
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
// Instantiate the bean.
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
if (instanceWrapper == null) {
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
// Allow post-processors to modify the merged bean definition.
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex);
}
mbd.markAsPostProcessed();
}
}
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isTraceEnabled()) {
logger.trace("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}
// Initialize the bean instance.
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper);
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
catch (Throwable ex) {
if (ex instanceof BeanCreationException bce && beanName.equals(bce.getBeanName())) {
throw bce;
}
else {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, ex.getMessage(), ex);
}
}
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
}
else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
for (String dependentBean : dependentBeans) {
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName,
"Bean with name '" + beanName + "' has been injected into other beans [" +
StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
"] in its raw version as part of a circular reference, but has eventually been " +
"wrapped. This means that said other beans do not use the final version of the " +
"bean. This is often the result of over-eager type matching - consider using " +
"'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
// Register bean as disposable.
try {
registerDisposableBeanIfNecessary(beanName, bean, mbd);
}
catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}
/**
* Initialize the given bean instance, applying factory callbacks
* as well as init methods and bean post processors.
* <p>Called from {@link #createBean} for traditionally defined beans,
* and from {@link #initializeBean} for existing bean instances.
* @param beanName the bean name in the factory (for debugging purposes)
* @param bean the new bean instance we may need to initialize
* @param mbd the bean definition that the bean was created with
* (can also be {@code null}, if given an existing bean instance)
* @return the initialized bean instance (potentially wrapped)
* @see BeanNameAware
* @see BeanClassLoaderAware
* @see BeanFactoryAware
* @see #applyBeanPostProcessorsBeforeInitialization
* @see #invokeInitMethods
* @see #applyBeanPostProcessorsAfterInitialization
*/
protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
invokeAwareMethods(beanName, bean);
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
}
try {
invokeInitMethods(beanName, wrappedBean, mbd);
}
catch (Throwable ex) {
throw new BeanCreationException(
(mbd != null ? mbd.getResourceDescription() : null), beanName, ex.getMessage(), ex);
}
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}
@Override
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
throws BeansException {
Object result = existingBean;
for (BeanPostProcessor processor : getBeanPostProcessors()) {
Object current = processor.postProcessAfterInitialization(result, beanName);
if (current == null) {
return result;
}
result = current;
}
return result;
}
}AbstractAutowireCapableBeanFactory 객체를 생성하고 관리하는데 사용된다.
createBean() 빈 객체를 생성하고 빈 인스턴스를 반환한다. 빈 생성 중에 발생할 수 있는 예외를 처리하고, 빈 객체를 생성하고 빈 초기화 및 후처리 작업을 수행.doCreateBean() 실제로 빈 객체를 생성하는 메서드로 빈의 스코프(Singleton, Prototype 등)에 따라 빈을 생성하고, 생성된 빈 객체를 반환.initializeBean() 빈 초기화 전후에 실행되는 후처리 작업을 수행한다.
/**
* Factory hook that allows for custom modification of new bean instances —
* for example, checking for marker interfaces or wrapping beans with proxies.
*
* <p>Typically, post-processors that populate beans via marker interfaces
* or the like will implement {@link #postProcessBeforeInitialization},
* while post-processors that wrap beans with proxies will normally
* implement {@link #postProcessAfterInitialization}.
*
* <h3>Registration</h3>
* <p>An {@code ApplicationContext} can autodetect {@code BeanPostProcessor} beans
* in its bean definitions and apply those post-processors to any beans subsequently
* created. A plain {@code BeanFactory} allows for programmatic registration of
* post-processors, applying them to all beans created through the bean factory.
*
* <h3>Ordering</h3>
* <p>{@code BeanPostProcessor} beans that are autodetected in an
* {@code ApplicationContext} will be ordered according to
* {@link org.springframework.core.PriorityOrdered} and
* {@link org.springframework.core.Ordered} semantics. In contrast,
* {@code BeanPostProcessor} beans that are registered programmatically with a
* {@code BeanFactory} will be applied in the order of registration; any ordering
* semantics expressed through implementing the
* {@code PriorityOrdered} or {@code Ordered} interface will be ignored for
* programmatically registered post-processors. Furthermore, the
* {@link org.springframework.core.annotation.Order @Order} annotation is not
* taken into account for {@code BeanPostProcessor} beans.
*
* @author Juergen Hoeller
* @author Sam Brannen
* @since 10.10.2003
* @see InstantiationAwareBeanPostProcessor
* @see DestructionAwareBeanPostProcessor
* @see ConfigurableBeanFactory#addBeanPostProcessor
* @see BeanFactoryPostProcessor
*/
public interface BeanPostProcessor {
/**
* Apply this {@code BeanPostProcessor} to the given new bean instance <i>before</i> any bean
* initialization callbacks (like InitializingBean's {@code afterPropertiesSet}
* or a custom init-method). The bean will already be populated with property values.
* The returned bean instance may be a wrapper around the original.
* <p>The default implementation returns the given {@code bean} as-is.
* @param bean the new bean instance
* @param beanName the name of the bean
* @return the bean instance to use, either the original or a wrapped one;
* if {@code null}, no subsequent BeanPostProcessors will be invoked
* @throws org.springframework.beans.BeansException in case of errors
* @see org.springframework.beans.factory.InitializingBean#afterPropertiesSet
*/
@Nullable
default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
/**
* Apply this {@code BeanPostProcessor} to the given new bean instance <i>after</i> any bean
* initialization callbacks (like InitializingBean's {@code afterPropertiesSet}
* or a custom init-method). The bean will already be populated with property values.
* The returned bean instance may be a wrapper around the original.
* <p>In case of a FactoryBean, this callback will be invoked for both the FactoryBean
* instance and the objects created by the FactoryBean (as of Spring 2.0). The
* post-processor can decide whether to apply to either the FactoryBean or created
* objects or both through corresponding {@code bean instanceof FactoryBean} checks.
* <p>This callback will also be invoked after a short-circuiting triggered by a
* {@link InstantiationAwareBeanPostProcessor#postProcessBeforeInstantiation} method,
* in contrast to all other {@code BeanPostProcessor} callbacks.
* <p>The default implementation returns the given {@code bean} as-is.
* @param bean the new bean instance
* @param beanName the name of the bean
* @return the bean instance to use, either the original or a wrapped one;
* if {@code null}, no subsequent BeanPostProcessors will be invoked
* @throws org.springframework.beans.BeansException in case of errors
* @see org.springframework.beans.factory.InitializingBean#afterPropertiesSet
* @see org.springframework.beans.factory.FactoryBean
*/
@Nullable
default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
}BeanPostProcessor 는 초기화 이전, 이후 의 작업을 진행하며, 구현체를 여러개 가진다.
public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport
implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
@Override
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
if (bean != null) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
if (this.earlyProxyReferences.remove(cacheKey) != bean) {
return wrapIfNecessary(bean, beanName, cacheKey);
}
}
return bean;
}
/**
* Wrap the given bean if necessary, i.e. if it is eligible for being proxied.
* @param bean the raw bean instance
* @param beanName the name of the bean
* @param cacheKey the cache key for metadata access
* @return a proxy wrapping the bean, or the raw bean instance as-is
*/
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
// Create proxy if we have advice.
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
if (specificInterceptors != DO_NOT_PROXY) {
this.advisedBeans.put(cacheKey, Boolean.TRUE);
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
/**
* Return whether the given bean is to be proxied, what additional
* advices (e.g. AOP Alliance interceptors) and advisors to apply.
* @param beanClass the class of the bean to advise
* @param beanName the name of the bean
* @param customTargetSource the TargetSource returned by the
* {@link #getCustomTargetSource} method: may be ignored.
* Will be {@code null} if no custom target source is in use.
* @return an array of additional interceptors for the particular bean;
* or an empty array if no additional interceptors but just the common ones;
* or {@code null} if no proxy at all, not even with the common interceptors.
* See constants DO_NOT_PROXY and PROXY_WITHOUT_ADDITIONAL_INTERCEPTORS.
* @throws BeansException in case of errors
* @see #DO_NOT_PROXY
* @see #PROXY_WITHOUT_ADDITIONAL_INTERCEPTORS
*/
@Nullable
protected abstract Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName,
@Nullable TargetSource customTargetSource) throws BeansException;
/**
* Create an AOP proxy for the given bean.
* @param beanClass the class of the bean
* @param beanName the name of the bean
* @param specificInterceptors the set of interceptors that is
* specific to this bean (may be empty, but not null)
* @param targetSource the TargetSource for the proxy,
* already pre-configured to access the bean
* @return the AOP proxy for the bean
* @see #buildAdvisors
*/
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
@Nullable Object[] specificInterceptors, TargetSource targetSource) {
return buildProxy(beanClass, beanName, specificInterceptors, targetSource, false);
}
/**
* Create an AOP proxy for the given bean.
* @param beanClass the class of the bean
* @param beanName the name of the bean
* @param specificInterceptors the set of interceptors that is
* specific to this bean (may be empty, but not null)
* @param targetSource the TargetSource for the proxy,
* already pre-configured to access the bean
* @return the AOP proxy for the bean
* @see #buildAdvisors
*/
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
@Nullable Object[] specificInterceptors, TargetSource targetSource) {
return buildProxy(beanClass, beanName, specificInterceptors, targetSource, false);
}
}postProcessAfterInitialization() 빈이 초기화된 후에 실행되며, 빈을 프록시로 래핑할지 여부를 결정wrapIfNecessary() 주어진 빈을 필요한 경우 프록시로 래핑getAdvicesAndAdvisorsForBean() AbstractAdvisorAutoProxyCreator 클래스에서 구현
public abstract class AbstractAdvisorAutoProxyCreator extends AbstractAutoProxyCreator {
@Nullable
protected Object[] getAdvicesAndAdvisorsForBean(
Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
if (advisors.isEmpty()) {
return DO_NOT_PROXY;
}
return advisors.toArray();
}
/**
* Find all eligible Advisors for auto-proxying this class.
* @param beanClass the clazz to find advisors for
* @param beanName the name of the currently proxied bean
* @return the empty List, not {@code null},
* if there are no pointcuts or interceptors
* @see #findCandidateAdvisors
* @see #sortAdvisors
* @see #extendAdvisors
*/
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
List<Advisor> candidateAdvisors = findCandidateAdvisors();
List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
extendAdvisors(eligibleAdvisors);
if (!eligibleAdvisors.isEmpty()) {
eligibleAdvisors = sortAdvisors(eligibleAdvisors);
}
return eligibleAdvisors;
}
/**
* Find all candidate Advisors to use in auto-proxying.
* @return the List of candidate Advisors
*/
protected List<Advisor> findCandidateAdvisors() {
Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");
return this.advisorRetrievalHelper.findAdvisorBeans();
}
/**
* Search the given candidate Advisors to find all Advisors that
* can apply to the specified bean.
* @param candidateAdvisors the candidate Advisors
* @param beanClass the target's bean class
* @param beanName the target's bean name
* @return the List of applicable Advisors
* @see ProxyCreationContext#getCurrentProxiedBeanName()
*/
protected List<Advisor> findAdvisorsThatCanApply(
List<Advisor> candidateAdvisors, Class<?> beanClass, String beanName) {
ProxyCreationContext.setCurrentProxiedBeanName(beanName);
try {
return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
}
finally {
ProxyCreationContext.setCurrentProxiedBeanName(null);
}
}
}AbstractAdvisorAutoProxyCreator 의 구현체로 AspectJ 에서는 AspectJAwareAdvisorAutoProxyCreator 클래스를 사용하며 SpringAOP 에서는 DefaultAdvisorAutoProxyCreator를 사용한다.
findEligibleAdvisors ()에서 findCandidateAdvisors()를 호출하여 후보 어드바이저 목록을 가져오고, findAdvisorsThatCanApply() 사용하여 실제로 빈에 적용 가능한 어드바이저 목록을 탐색.
public abstract class AopUtils {
/**
* Determine the sublist of the {@code candidateAdvisors} list
* that is applicable to the given class.
* @param candidateAdvisors the Advisors to evaluate
* @param clazz the target class
* @return sublist of Advisors that can apply to an object of the given class
* (may be the incoming List as-is)
*/
public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
if (candidateAdvisors.isEmpty()) {
return candidateAdvisors;
}
List<Advisor> eligibleAdvisors = new ArrayList<>();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
eligibleAdvisors.add(candidate);
}
}
boolean hasIntroductions = !eligibleAdvisors.isEmpty();
for (Advisor candidate : candidateAdvisors) {
if (candidate instanceof IntroductionAdvisor) {
// already processed
continue;
}
if (canApply(candidate, clazz, hasIntroductions)) {
eligibleAdvisors.add(candidate);
}
}
return eligibleAdvisors;
}
/**
* Can the given advisor apply at all on the given class?
* This is an important test as it can be used to optimize
* out an advisor for a class.
* @param advisor the advisor to check
* @param targetClass class we're testing
* @return whether the pointcut can apply on any method
*/
public static boolean canApply(Advisor advisor, Class<?> targetClass) {
return canApply(advisor, targetClass, false);
}
/**
* Can the given advisor apply at all on the given class?
* <p>This is an important test as it can be used to optimize out an advisor for a class.
* This version also takes into account introductions (for IntroductionAwareMethodMatchers).
* @param advisor the advisor to check
* @param targetClass class we're testing
* @param hasIntroductions whether the advisor chain for this bean includes
* any introductions
* @return whether the pointcut can apply on any method
*/
public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
if (advisor instanceof IntroductionAdvisor ia) {
return ia.getClassFilter().matches(targetClass);
}
else if (advisor instanceof PointcutAdvisor pca) {
return canApply(pca.getPointcut(), targetClass, hasIntroductions);
}
else {
// It doesn't have a pointcut so we assume it applies.
return true;
}
}
/**
* Can the given pointcut apply at all on the given class?
* <p>This is an important test as it can be used to optimize
* out a pointcut for a class.
* @param pc the static or dynamic pointcut to check
* @param targetClass the class to test
* @param hasIntroductions whether the advisor chain
* for this bean includes any introductions
* @return whether the pointcut can apply on any method
*/
public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
Assert.notNull(pc, "Pointcut must not be null");
if (!pc.getClassFilter().matches(targetClass)) {
return false;
}
MethodMatcher methodMatcher = pc.getMethodMatcher();
if (methodMatcher == MethodMatcher.TRUE) {
// No need to iterate the methods if we're matching any method anyway...
return true;
}
IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
if (methodMatcher instanceof IntroductionAwareMethodMatcher iamm) {
introductionAwareMethodMatcher = iamm;
}
Set<Class<?>> classes = new LinkedHashSet<>();
if (!Proxy.isProxyClass(targetClass)) {
classes.add(ClassUtils.getUserClass(targetClass));
}
classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
for (Class<?> clazz : classes) {
Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
for (Method method : methods) {
if (introductionAwareMethodMatcher != null ?
introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
methodMatcher.matches(method, targetClass)) {
return true;
}
}
}
return false;
}
}
canApply() 적용 여부를 판단
public class AspectJExpressionPointcut extends AbstractExpressionPointcut
implements ClassFilter, IntroductionAwareMethodMatcher, BeanFactoryAware {
@Override
public ClassFilter getClassFilter() {
obtainPointcutExpression();
return this;
}
/**
* Check whether this pointcut is ready to match,
* lazily building the underlying AspectJ pointcut expression.
*/
private PointcutExpression obtainPointcutExpression() {
if (getExpression() == null) {
throw new IllegalStateException("Must set property 'expression' before attempting to match");
}
if (this.pointcutExpression == null) {
this.pointcutClassLoader = determinePointcutClassLoader();
this.pointcutExpression = buildPointcutExpression(this.pointcutClassLoader);
}
return this.pointcutExpression;
}
/**
* Determine the ClassLoader to use for pointcut evaluation.
*/
@Nullable
private ClassLoader determinePointcutClassLoader() {
if (this.beanFactory instanceof ConfigurableBeanFactory cbf) {
return cbf.getBeanClassLoader();
}
if (this.pointcutDeclarationScope != null) {
return this.pointcutDeclarationScope.getClassLoader();
}
return ClassUtils.getDefaultClassLoader();
}
/**
* Build the underlying AspectJ pointcut expression.
*/
private PointcutExpression buildPointcutExpression(@Nullable ClassLoader classLoader) {
PointcutParser parser = initializePointcutParser(classLoader);
PointcutParameter[] pointcutParameters = new PointcutParameter[this.pointcutParameterNames.length];
for (int i = 0; i < pointcutParameters.length; i++) {
pointcutParameters[i] = parser.createPointcutParameter(
this.pointcutParameterNames[i], this.pointcutParameterTypes[i]);
}
return parser.parsePointcutExpression(replaceBooleanOperators(resolveExpression()),
this.pointcutDeclarationScope, pointcutParameters);
}
}obtainPointcutExpression() AspectJ 표현식을 lazily 빌드하고 해당 표현식을 가져오는데 사용.getExpression() 현재 설정된 표현식이 있는지 확인. 만약, 설정되어 있지 않다면 예외 처리.pointcutExpression() null 이면 새로운 pointcutClassLoader 생성 후, buildPointcutExpression() 사용하여 AspectJ 포인트컷 표현식을 빌드.pointcutExpression() 필드에 저장된 포인트컷 표현식을 반환.determinePointcutClassLoader() 포인트컷에 사용할 클래스로더를 결정.buildPointcutExpression() AspectJ 포인트컷 표현식을 빌드
public class DefaultAopProxyFactory implements AopProxyFactory, Serializable {
@Override
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
Class<?> targetClass = config.getTargetClass();
if (targetClass == null) {
throw new AopConfigException("TargetSource cannot determine target class: " +
"Either an interface or a target is required for proxy creation.");
}
if (targetClass.isInterface() || Proxy.isProxyClass(targetClass) || ClassUtils.isLambdaClass(targetClass)) {
return new JdkDynamicAopProxy(config);
}
return new ObjenesisCglibAopProxy(config);
} else {
return new JdkDynamicAopProxy(config);
}
}
}AbstractAutoProxyCreator 의 proxyFactory는 DefaultAopProxyFactory 클래스다.
DefaultAopProxyFactory 에서 타켓이 interface 인 경우엔 JdkDynamicAopProxy 를 사용하도록 되어있으며 클래스인 경우 ObjenesisCglibAopProxy를 사용하여 getProxy()를 처리하도록 되어있다.
final class JdkDynamicAopProxy implements AopProxy, InvocationHandler, Serializable {
@Override
public Object getProxy(@Nullable ClassLoader classLoader) {
if (logger.isTraceEnabled()) {
logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
}
Class<?>[] proxiedInterfaces = AopProxyUtils.completeProxiedInterfaces(this.advised, true);
findDefinedEqualsAndHashCodeMethods(proxiedInterfaces);
return Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);
}
}JdkDynamicAopProxy
public abstract class AopProxyUtils {
/**
* Determine the complete set of interfaces to proxy for the given AOP configuration.
* <p>This will always add the {@link Advised} interface unless the AdvisedSupport's
* {@link AdvisedSupport#setOpaque "opaque"} flag is on. Always adds the
* {@link org.springframework.aop.SpringProxy} marker interface.
* @param advised the proxy config
* @param decoratingProxy whether to expose the {@link DecoratingProxy} interface
* @return the complete set of interfaces to proxy
* @since 4.3
* @see SpringProxy
* @see Advised
* @see DecoratingProxy
*/
static Class<?>[] completeProxiedInterfaces(AdvisedSupport advised, boolean decoratingProxy) {
Class<?>[] specifiedInterfaces = advised.getProxiedInterfaces();
if (specifiedInterfaces.length == 0) {
// No user-specified interfaces: check whether target class is an interface.
Class<?> targetClass = advised.getTargetClass();
if (targetClass != null) {
if (targetClass.isInterface()) {
advised.setInterfaces(targetClass);
}
else if (Proxy.isProxyClass(targetClass) || ClassUtils.isLambdaClass(targetClass)) {
advised.setInterfaces(targetClass.getInterfaces());
}
specifiedInterfaces = advised.getProxiedInterfaces();
}
}
List<Class<?>> proxiedInterfaces = new ArrayList<>(specifiedInterfaces.length + 3);
for (Class<?> ifc : specifiedInterfaces) {
// Only non-sealed interfaces are actually eligible for JDK proxying (on JDK 17)
if (!ifc.isSealed()) {
proxiedInterfaces.add(ifc);
}
}
if (!advised.isInterfaceProxied(SpringProxy.class)) {
proxiedInterfaces.add(SpringProxy.class);
}
if (!advised.isOpaque() && !advised.isInterfaceProxied(Advised.class)) {
proxiedInterfaces.add(Advised.class);
}
if (decoratingProxy && !advised.isInterfaceProxied(DecoratingProxy.class)) {
proxiedInterfaces.add(DecoratingProxy.class);
}
return ClassUtils.toClassArray(proxiedInterfaces);
}
}타겟 클래스가 인터페이스인 경우, advised 객체의 인터페이스 설정을 해당 인터페이스로 지정한다. 그렇지 않고 타겟 클래스가 프록시 클래스이거나 Lambda 클래스인 경우, 해당 클래스의 인터페이스들을 advised 객체의 인터페이스로 설정
proxiedInterfaces 에 non-sealed 인터페이스들을 추가 한다.
public class Proxy implements java.io.Serializable {
/**
* Returns a proxy instance for the specified interfaces
* that dispatches method invocations to the specified invocation
* handler.
* <p>
* <a id="restrictions">{@code IllegalArgumentException} will be thrown
* if any of the following restrictions is violated:</a>
* <ul>
* <li>All of {@code Class} objects in the given {@code interfaces} array
* must represent {@linkplain Class#isHidden() non-hidden} and
* {@linkplain Class#isSealed() non-sealed} interfaces,
* not classes or primitive types.
*
* <li>No two elements in the {@code interfaces} array may
* refer to identical {@code Class} objects.
*
* <li>All of the interface types must be visible by name through the
* specified class loader. In other words, for class loader
* {@code cl} and every interface {@code i}, the following
* expression must be true:<p>
* {@code Class.forName(i.getName(), false, cl) == i}
*
* <li>All of the types referenced by all
* public method signatures of the specified interfaces
* and those inherited by their superinterfaces
* must be visible by name through the specified class loader.
*
* <li>All non-public interfaces must be in the same package
* and module, defined by the specified class loader and
* the module of the non-public interfaces can access all of
* the interface types; otherwise, it would not be possible for
* the proxy class to implement all of the interfaces,
* regardless of what package it is defined in.
*
* <li>For any set of member methods of the specified interfaces
* that have the same signature:
* <ul>
* <li>If the return type of any of the methods is a primitive
* type or void, then all of the methods must have that same
* return type.
* <li>Otherwise, one of the methods must have a return type that
* is assignable to all of the return types of the rest of the
* methods.
* </ul>
*
* <li>The resulting proxy class must not exceed any limits imposed
* on classes by the virtual machine. For example, the VM may limit
* the number of interfaces that a class may implement to 65535; in
* that case, the size of the {@code interfaces} array must not
* exceed 65535.
* </ul>
*
* <p>Note that the order of the specified proxy interfaces is
* significant: two requests for a proxy class with the same combination
* of interfaces but in a different order will result in two distinct
* proxy classes.
*
* @param loader the class loader to define the proxy class
* @param interfaces the list of interfaces for the proxy class
* to implement
* @param h the invocation handler to dispatch method invocations to
* @return a proxy instance with the specified invocation handler of a
* proxy class that is defined by the specified class loader
* and that implements the specified interfaces
* @throws IllegalArgumentException if any of the <a href="#restrictions">
* restrictions</a> on the parameters are violated
* @throws SecurityException if a security manager, <em>s</em>, is present
* and any of the following conditions is met:
* <ul>
* <li> the given {@code loader} is {@code null} and
* the caller's class loader is not {@code null} and the
* invocation of {@link SecurityManager#checkPermission
* s.checkPermission} with
* {@code RuntimePermission("getClassLoader")} permission
* denies access;</li>
* <li> for each proxy interface, {@code intf},
* the caller's class loader is not the same as or an
* ancestor of the class loader for {@code intf} and
* invocation of {@link SecurityManager#checkPackageAccess
* s.checkPackageAccess()} denies access to {@code intf};</li>
* <li> any of the given proxy interfaces is non-public and the
* caller class is not in the same {@linkplain Package runtime package}
* as the non-public interface and the invocation of
* {@link SecurityManager#checkPermission s.checkPermission} with
* {@code ReflectPermission("newProxyInPackage.{package name}")}
* permission denies access.</li>
* </ul>
* @throws NullPointerException if the {@code interfaces} array
* argument or any of its elements are {@code null}, or
* if the invocation handler, {@code h}, is
* {@code null}
*
* @see <a href="#membership">Package and Module Membership of Proxy Class</a>
* @revised 9
*/
@CallerSensitive
public static Object newProxyInstance(ClassLoader loader,
Class<?>[] interfaces,
InvocationHandler h) {
Objects.requireNonNull(h);
@SuppressWarnings("removal")
final Class<?> caller = System.getSecurityManager() == null
? null
: Reflection.getCallerClass();
/*
* Look up or generate the designated proxy class and its constructor.
*/
Constructor<?> cons = getProxyConstructor(caller, loader, interfaces);
return newProxyInstance(caller, cons, h);
}
private static Object newProxyInstance(Class<?> caller, // null if no SecurityManager
Constructor<?> cons,
InvocationHandler h) {
/*
* Invoke its constructor with the designated invocation handler.
*/
try {
if (caller != null) {
checkNewProxyPermission(caller, cons.getDeclaringClass());
}
return cons.newInstance(new Object[]{h});
} catch (IllegalAccessException | InstantiationException e) {
throw new InternalError(e.toString(), e);
} catch (InvocationTargetException e) {
Throwable t = e.getCause();
if (t instanceof RuntimeException) {
throw (RuntimeException) t;
} else {
throw new InternalError(t.toString(), t);
}
}
}
}newProxyInstance() 는 interface를 받도록 구현되어있다.
public final class Constructor<T> extends Executable {
/**
* Uses the constructor represented by this {@code Constructor} object to
* create and initialize a new instance of the constructor's
* declaring class, with the specified initialization parameters.
* Individual parameters are automatically unwrapped to match
* primitive formal parameters, and both primitive and reference
* parameters are subject to method invocation conversions as necessary.
*
* <p>If the number of formal parameters required by the underlying constructor
* is 0, the supplied {@code initargs} array may be of length 0 or null.
*
* <p>If the constructor's declaring class is an inner class in a
* non-static context, the first argument to the constructor needs
* to be the enclosing instance; see section {@jls 15.9.3} of
* <cite>The Java Language Specification</cite>.
*
* <p>If the required access and argument checks succeed and the
* instantiation will proceed, the constructor's declaring class
* is initialized if it has not already been initialized.
*
* <p>If the constructor completes normally, returns the newly
* created and initialized instance.
*
* @param initargs array of objects to be passed as arguments to
* the constructor call; values of primitive types are wrapped in
* a wrapper object of the appropriate type (e.g. a {@code float}
* in a {@link java.lang.Float Float})
*
* @return a new object created by calling the constructor
* this object represents
*
* @throws IllegalAccessException if this {@code Constructor} object
* is enforcing Java language access control and the underlying
* constructor is inaccessible.
* @throws IllegalArgumentException if the number of actual
* and formal parameters differ; if an unwrapping
* conversion for primitive arguments fails; or if,
* after possible unwrapping, a parameter value
* cannot be converted to the corresponding formal
* parameter type by a method invocation conversion; if
* this constructor pertains to an enum class.
* @throws InstantiationException if the class that declares the
* underlying constructor represents an abstract class.
* @throws InvocationTargetException if the underlying constructor
* throws an exception.
* @throws ExceptionInInitializerError if the initialization provoked
* by this method fails.
*/
@CallerSensitive
@ForceInline // to ensure Reflection.getCallerClass optimization
public T newInstance(Object ... initargs)
throws InstantiationException, IllegalAccessException,
IllegalArgumentException, InvocationTargetException
{
Class<?> caller = override ? null : Reflection.getCallerClass();
return newInstanceWithCaller(initargs, !override, caller);
}
/* package-private */
T newInstanceWithCaller(Object[] args, boolean checkAccess, Class<?> caller)
throws InstantiationException, IllegalAccessException,
InvocationTargetException
{
if (checkAccess)
checkAccess(caller, clazz, clazz, modifiers);
if ((clazz.getModifiers() & Modifier.ENUM) != 0)
throw new IllegalArgumentException("Cannot reflectively create enum objects");
ConstructorAccessor ca = constructorAccessor; // read volatile
if (ca == null) {
ca = acquireConstructorAccessor();
}
@SuppressWarnings("unchecked")
T inst = (T) ca.newInstance(args);
return inst;
}
}ConstructorAccessor 는 DelegatingConstructorAccessorImpl를 사용DelegatingConstructorAccessorImpl의 delegate로 NativeConstructorAccessorImpl를 가진다.
CGLIB
class ObjenesisCglibAopProxy extends CglibAopProxy {
@Override
protected Object createProxyClassAndInstance(Enhancer enhancer, Callback[] callbacks) {
Class<?> proxyClass = enhancer.createClass();
Object proxyInstance = null;
if (objenesis.isWorthTrying()) {
try {
proxyInstance = objenesis.newInstance(proxyClass, enhancer.getUseCache());
}
catch (Throwable ex) {
logger.debug("Unable to instantiate proxy using Objenesis, " +
"falling back to regular proxy construction", ex);
}
}
if (proxyInstance == null) {
// Regular instantiation via default constructor...
try {
Constructor<?> ctor = (this.constructorArgs != null ?
proxyClass.getDeclaredConstructor(this.constructorArgTypes) :
proxyClass.getDeclaredConstructor());
ReflectionUtils.makeAccessible(ctor);
proxyInstance = (this.constructorArgs != null ?
ctor.newInstance(this.constructorArgs) : ctor.newInstance());
}
catch (Throwable ex) {
throw new AopConfigException("Unable to instantiate proxy using Objenesis, " +
"and regular proxy instantiation via default constructor fails as well", ex);
}
}
((Factory) proxyInstance).setCallbacks(callbacks);
return proxyInstance;
}
}Enhancer 프록시 클래스를 생성Objenesis 프록시 클래스의 인스턴스를 만들려 시도하고 실패하는 경우 기본 프록시 생성 방법을 사용.
class CglibAopProxy implements AopProxy, Serializable {
@Override
public Object getProxy() {
return buildProxy(null, false);
}
@Override
public Object getProxy(@Nullable ClassLoader classLoader) {
return buildProxy(classLoader, false);
}
@Override
public Class<?> getProxyClass(@Nullable ClassLoader classLoader) {
return (Class<?>) buildProxy(classLoader, true);
}
private Object buildProxy(@Nullable ClassLoader classLoader, boolean classOnly) {
if (logger.isTraceEnabled()) {
logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
}
try {
Class<?> rootClass = this.advised.getTargetClass();
Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");
Class<?> proxySuperClass = rootClass;
if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {
proxySuperClass = rootClass.getSuperclass();
Class<?>[] additionalInterfaces = rootClass.getInterfaces();
for (Class<?> additionalInterface : additionalInterfaces) {
this.advised.addInterface(additionalInterface);
}
}
// Validate the class, writing log messages as necessary.
validateClassIfNecessary(proxySuperClass, classLoader);
// Configure CGLIB Enhancer...
Enhancer enhancer = createEnhancer();
if (classLoader != null) {
enhancer.setClassLoader(classLoader);
if (classLoader instanceof SmartClassLoader smartClassLoader &&
smartClassLoader.isClassReloadable(proxySuperClass)) {
enhancer.setUseCache(false);
}
}
enhancer.setSuperclass(proxySuperClass);
enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
enhancer.setAttemptLoad(true);
enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));
Callback[] callbacks = getCallbacks(rootClass);
Class<?>[] types = new Class<?>[callbacks.length];
for (int x = 0; x < types.length; x++) {
types[x] = callbacks[x].getClass();
}
// fixedInterceptorMap only populated at this point, after getCallbacks call above
ProxyCallbackFilter filter = new ProxyCallbackFilter(
this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset);
enhancer.setCallbackFilter(filter);
enhancer.setCallbackTypes(types);
// Generate the proxy class and create a proxy instance.
// ProxyCallbackFilter has method introspection capability with Advisor access.
try {
return (classOnly ? createProxyClass(enhancer) : createProxyClassAndInstance(enhancer, callbacks));
}
finally {
// Reduce ProxyCallbackFilter to key-only state for its class cache role
// in the CGLIB$CALLBACK_FILTER field, not leaking any Advisor state...
filter.advised.reduceToAdvisorKey();
}
}
catch (CodeGenerationException | IllegalArgumentException ex) {
throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
": Common causes of this problem include using a final class or a non-visible class",
ex);
}
catch (Throwable ex) {
// TargetSource.getTarget() failed
throw new AopConfigException("Unexpected AOP exception", ex);
}
}
}buildProxy() CGLIB Enhancer를 구성하며 클래스 로더 및 캐시 설정 한다. 프록시 클래스 및 인터페이스를 설정하고 Callback 및 CallbackFilter를 설정.
public class Enhancer extends AbstractClassGenerator {
/**
* Generate a new class if necessary and uses the specified
* callbacks (if any) to create a new object instance.
* Uses the no-arg constructor of the superclass.
* @return a new instance
*/
public Object create() {
classOnly = false;
argumentTypes = null;
return createHelper();
}
private Object createHelper() {
preValidate();
// SPRING PATCH BEGIN
Object key = new EnhancerKey((superclass != null ? superclass.getName() : null),
(interfaces != null ? Arrays.asList(ReflectUtils.getNames(interfaces)) : null),
(filter == ALL_ZERO ? null : new WeakCacheKey<>(filter)),
Arrays.asList(callbackTypes),
useFactory,
interceptDuringConstruction,
serialVersionUID);
// SPRING PATCH END
this.currentKey = key;
Object result = super.create(key);
return result;
}
}'IT > Spring' 카테고리의 다른 글
| Spring Boot 3.2 변경점 (3) | 2023.11.24 |
|---|---|
| 스프링의 트랜잭션 (0) | 2023.10.12 |
| RestControllerAdvice 사용하여 로깅 (0) | 2023.09.25 |
| AOP 사용하여 로깅 (0) | 2023.09.25 |
| Interceptor를 사용하여 Request/Reponse Logging (0) | 2023.09.20 |
댓글
